{{0}}.4mm Pitch Female Connector Mating Height 1.0mm BB0.4F

Product Description

Product AttributesSupply Ability Additional InformationPackaging Delivery<>

Overview

Product Attributes

Model No.: BB0.4F-0.8XXX02Brand: ANTENKplace of origin: ChinaInterface Type: Ac/DcHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: FemaleMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other

Supply Ability Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 2000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 2000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCA

Packaging Delivery

Selling Units:

Piece/Pieces

Package Type:

bag packing,Tube packing, reel packing

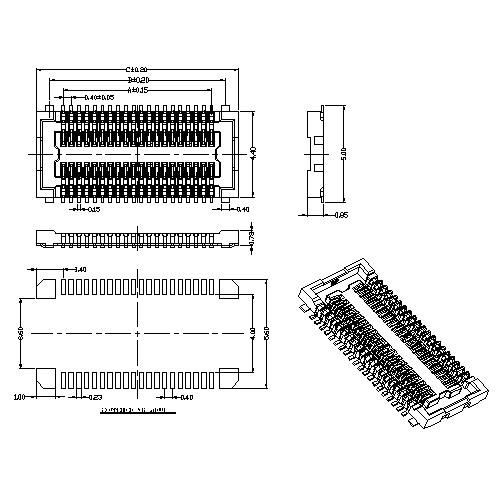

0.4mm Pitch Board to Board Female connector SMT Type

Specifications:

1.Materlal:

1-1.Molded portion:LCP resin(ul94-0).

1-2.Contact and post:copper alloy.

2.Surface treatment:

2-1.Terminal portion;base;Ni plating surface;

Au plating(except the terminal tips);exposed nickel portions.

2-2.Metal Clips:base;Ni plating surface;Au flash plating

(except the terminal tips)or base;Ni plating surface;

Sn flash plating (except the terminal tips)

3.Characteristics:

3-1.Rated voltage:60V AC/DC

3-2.Rated curren:0.3A/contact(Max.5A at total contact)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage:150V AC fou 1 min.

3-5.Saltwater spray resistance(header and socket mated:24 hours,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient temperature:-55 degree plus 85 degree .

3-8.Storage temperature:-55 degree plus 88 degree (product only);

-40 degree plus 50 degree (emboss packing).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite removal force:Min.0.165N/contacts X contacts.

3-11.Post holding force:Min.0.49N/contacts.

3-12.Insertion and removal life:50times

Q: What's is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

Q: Can you provide the FBA shipping service?

A: Yes, we have the good experience in providing the professional FBA service.

Q: What's your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF, DDP, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: What's your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
